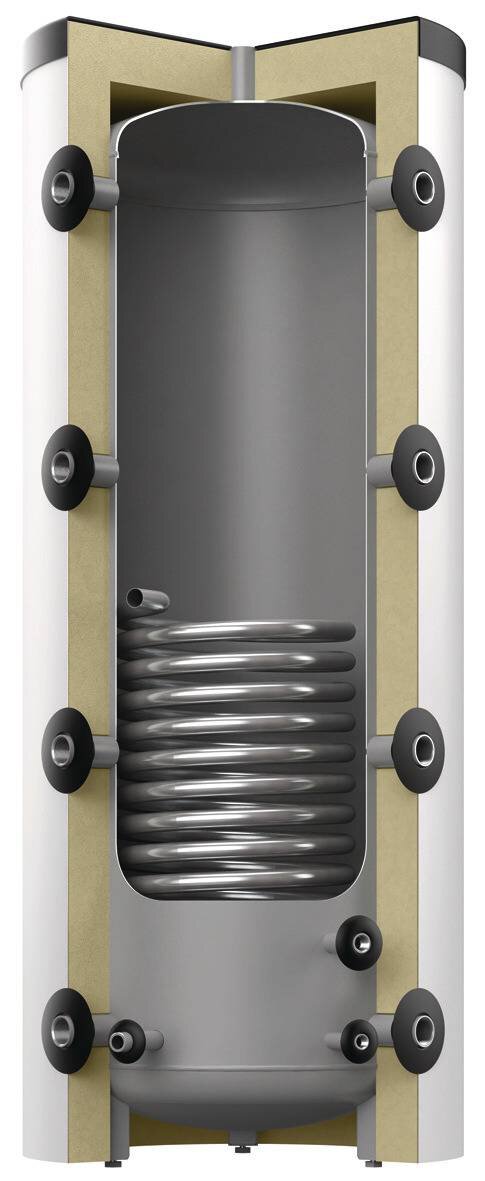

Storatherm Heat
Buffer tank for storing heating and cooling water. Optionally available in upright versions with/without flange or with one/two internal heat exchangers for connection of external energy sources.
The connector series for heat sources and consumers are vertical, offset through 100° configured as charging or discharging connectors. Between these connector series there also vertically arranged screw-in options for sensor sleeves, thermometers or similar (3 x Rp 3/4, 1 x Rp 1/2). Tanks with bare-tube exchanges also have flow and return connectors to the tube bundle heating surface. Storage tank of steel S235JR+AR, inside uncoated and outside corrosion protected. Buffer tank up to 1000 litre insulated with 100mm, buffer tank > 1000 litre with 120mm removable fleece insulation; according to DIN 4102-1 material class B2. Tanks up to 2000 litres are supplied ready-insulated. Tanks greater than 3000 litres are transported horizontally, without insulation. Insulation must be ordered separately. Tank available in energy efficiency class C. The heat losses are measured on an externally certified test bed.
Buffer tank for storing heating and cooling water. Optionally available in upright versions with/without flange or with one/two internal heat exchangers for connection of external energy sources.
The connector series for heat sources and consumers are vertical, offset through 100° configured as charging or discharging connectors. Between these connector series there also vertically arranged screw-in options for sensor sleeves, thermometers or similar (3 x Rp 3/4, 1 x Rp 1/2). Tanks with bare-tube exchanges also have flow and return connectors to the tube bundle heating surface. Storage tank of steel S235JR+AR, inside uncoated and outside corrosion protected. Buffer tank up to 1000 litre insulated with 100mm, buffer tank > 1000 litre with 120mm removable fleece insulation; according to DIN 4102-1 material class B2. Tanks up to 2000 litres are supplied ready-insulated. Tanks greater than 3000 litres are transported horizontally, without insulation. Insulation must be ordered separately. Tank available in energy efficiency class C. The heat losses are measured on an externally certified test bed.
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
optional
9126474 - EEHR 2.00
EEHR
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
optional
9126475 - EEHR 2.50
EEHR
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
optional
9126476 - EEHR 3.00
EEHR
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
optional
9126477 - EEHR 3.80
EEHR
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
optional
9126478 - EEHR 4.50
EEHR
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.
