Item no.: 9125592

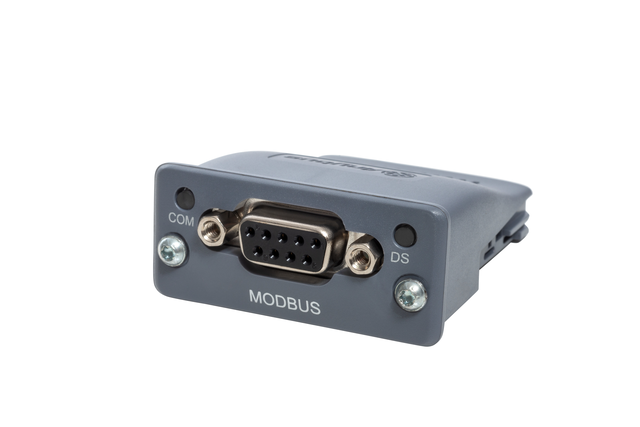

bus module Modbus RTU Touch

expansion for Control Touch

Technical data

Type

Modbus RTU Touch

Electric connection

230V/50Hz

Height

22 mm

Width

50 mm

Weight

0.20 kg

Product details

Bus-Module
Bus module for conversion of the information such as operating status from the control interface of Variomat, Reflexomat or Servitec as compact modules usable with the Control Touch controller, into the data telegram.

Direct integration on the control PCB of the Control Touch. No additional assembly is necessary. Connection to Touch Control via plug socket.

Installed in the controller housing of the Control Touch as an integrated extension module. On the Profibus side an RS 485 interface is available.

Remote control of the following functions and parameters from higher level building management system:

  • Pump/compressor 1 on
  • Pump/compressor 1 off
  • Pump/compressor 2 on
  • Pump/compressor 2 off
  • Overflow valve 1 open
  • Overflow valve 1 closed
  • Overflow valve 2 open
  • Overflow valve 2 closed
  • Make-up open
  • Make-up closed
  • Pressure specification p0 (pressure in 1/10 bar)
