Produktdetaljer

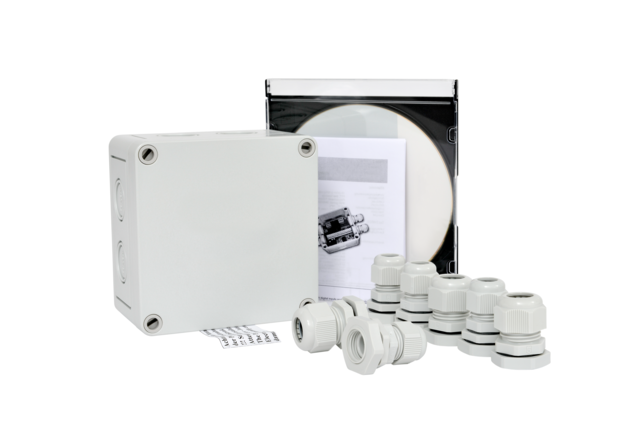

Bus-Module Lonworks Digital
Bus module for conversion of the digital message(s) from the microprocessor controls Control Basic or Touch of Variomat, Reflexomat or Servitec into the Lonworks Digital data telegram.The cable connection to the Control microprocessor controller takes place over its potential-free contacts and must be site-provided analogously to the power supply. On the LonWorks side there is an interface with FFT-10 A Transceiver .Other digital messages can also be converted in conjunction with the I/O module (option).Installation:
Plastic switch cabinet housing for on site wall mounting or installation in other switch cabinets.The wiring to the control unit is likewise performed on site. Commissioning and wiring does not form part of the scope of delivery.
Bus module for conversion of the digital message(s) from the microprocessor controls Control Basic or Touch of Variomat, Reflexomat or Servitec into the Lonworks Digital data telegram.The cable connection to the Control microprocessor controller takes place over its potential-free contacts and must be site-provided analogously to the power supply. On the LonWorks side there is an interface with FFT-10 A Transceiver .Other digital messages can also be converted in conjunction with the I/O module (option).Installation:
Plastic switch cabinet housing for on site wall mounting or installation in other switch cabinets.The wiring to the control unit is likewise performed on site. Commissioning and wiring does not form part of the scope of delivery.
Downloads
Dokumenter
Tegninger
Product photos
