Maximum water quality and heat transfer
With our Fillcontrol Auto range, we supply the ideal automatic make-up system for heating & chilled system requirement and, if required, also with directly integrated vacuum spray tube degassing - for maximum water quality and heat transfer.
Our products optimize planning flexibility. Not only in the area of make-up, but also with other necessary components such as membrane pressure expansion vessels, water treatment, sludge removal and other system-related components guarantee perfect compatibility and safety for the entire system from a single source.
:focal(986x643:987x644))
Advantages
- Designed for systems between 300 & 1,000 kW
- Easy, seamless and time-saving system integration
- Full compliance with UK regulations and WRAS approved ball valve
- Handling assistance and protection modes integrated
:focal(1726x818:1727x819))
There are many reasons why even regularly maintained and technically flawless systems lose water. These can be caused by small leaks, water vapour diffusion at sealing points, uncontrolled venting processes or even after repairs.
Automatic make-up in heating and cooling systems guarantees the compensation of system-related water losses and thus ensures a continuously safe and efficient system operation.
Fillcontrol Auto Plus and Fillcontrol Auto Max are the perfect automated water make-up solutions for medium sized systems from 300 up to 1,000 kW.
Choose the product solution which fits your system best
:focal(1041x627:1042x628))

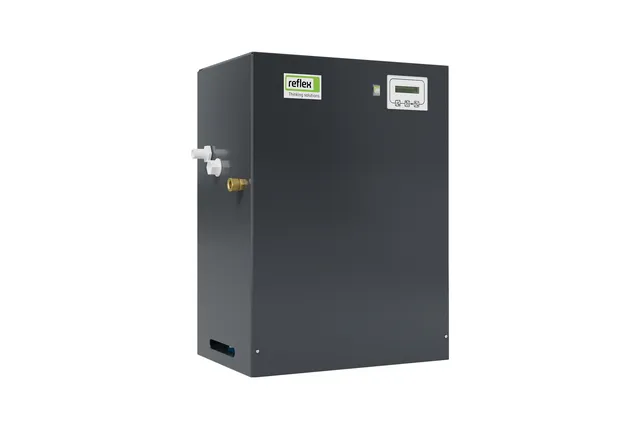

Fillcontrol Auto Plus
Fillcontrol Auto Plus is a compact, fully integrated solution for the safe and reliable filling of system water in heating and cooling systems.
The unit offers a stable pressurisation mode with a backflow prevention through a physical system break using a break tank and ball valve. One or dual-pump units provide consistent water make-up, ensuring reliable, long-term functionality.
state-of-the-art water make-up
compact , space-saving design ideal for all situations with space limitations
wall or floor mounting possible
automatic protection against dry running and flooding
:focal(888x632:889x633))

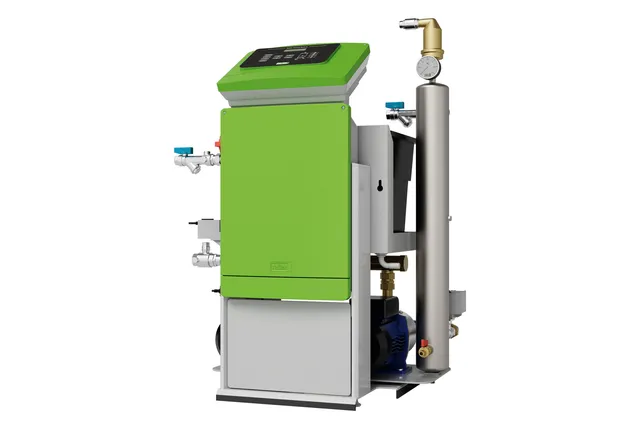

Fillcontrol Auto Max
Fillcontrol Auto Max combines fully automatic pressure control with efficient vacuum spray tube degassing for heating and cooling systems.
The pre-assembled, space-saving skid includes reliable backflow prevention through a physical system break using a break tank and ball valve. Its dual-pump make-up and water treatment unit ensures consistent water quality and a stable long-term operation – ideal for demanding HVAC applications.
state-of-the-art water make-up and water treatment
integrated automatic spray tube degassing improves system efficiency and protects against corrosion
fully automated operation with data interface for seamless integration into modern building management systems
)

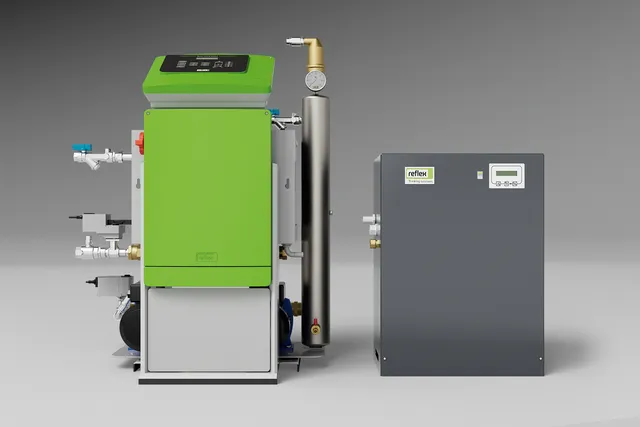

Fillcontrol Auto Plus & Fillcontrol Auto Max
Flyer for our new Fillcontol Auto product solutions.
Find further product details and background information in this flyer. We explain why water losses occur in your system and how our Fillcontrol Auto products create the perfect solution in automated water make-up.
