Product details

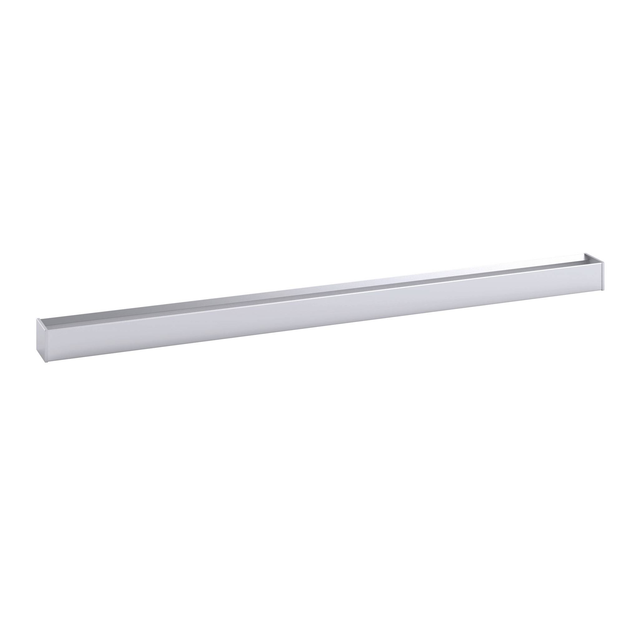

Discharge trough for safe and clean collection and capture of the system water to be drained from the respective heating or cooling circuits. Comprising galvanized steel plate edged in the form of a U-section. The length of the trough depends on the corresponding manifold and is prefabricated in the factory to ensure a precise fit. To prevent spray water, a spray water lip of 30 mm is provided. A chrome plated flow sieve with a 2” female thread is included.
Dimensions: 100x125x100 mm
