Product details

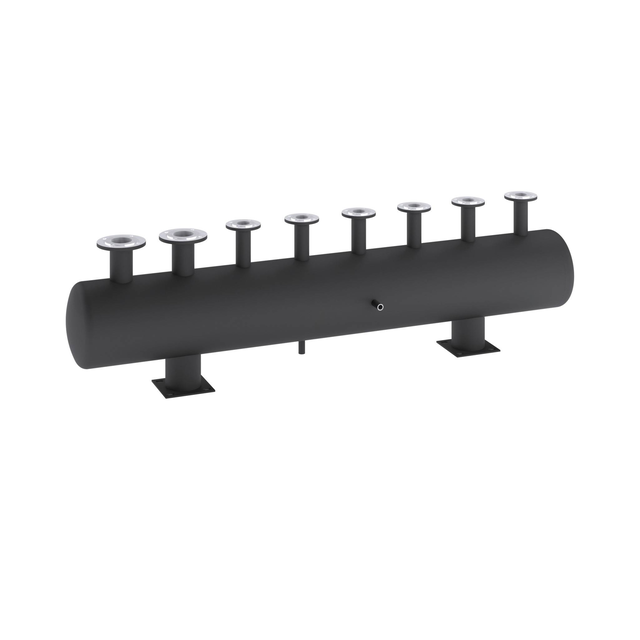

Single chamber manifold-/ collector from welded pipe P235 TR1 according to EN 10217-1, provided with boiler ends at both ends. Nozzles aligned at the height of the shut-off valves. Draining sleeve 1/2"".
Permissible maximum operating overpressure up to 6 bar, the actual operating overpressure is limited by the pressure range of the flanged connections.
The component is checked for 100% leak-tightness and primed in the factory.Downloads
