Product details

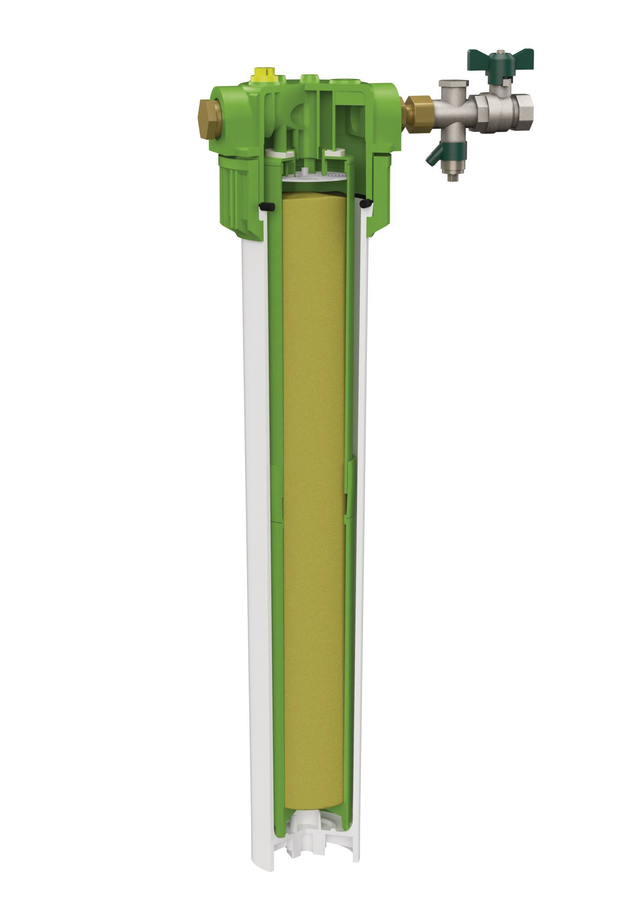

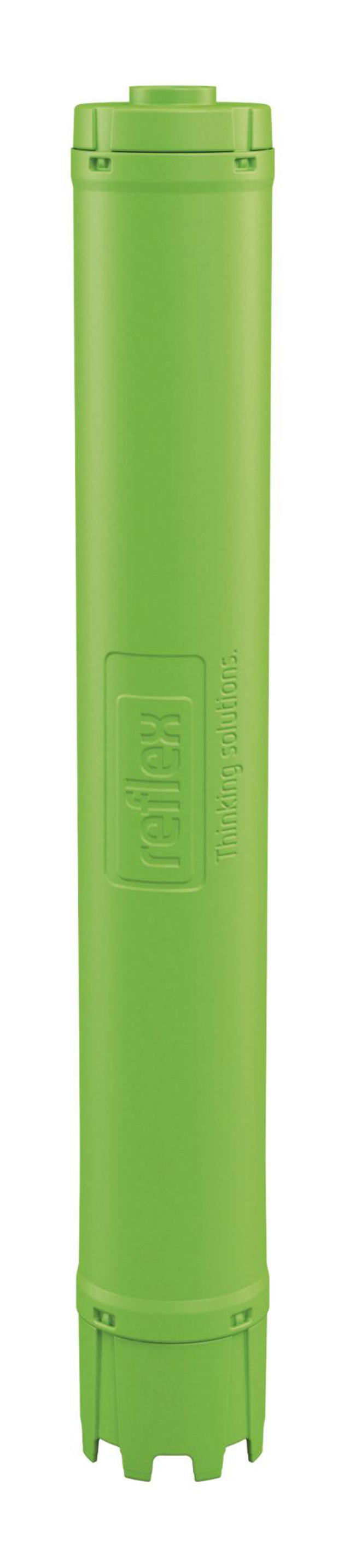

Cation resin cartridge for filling and make-up water softening, fitting in the Fillsoft I or II cartridge housing.
Comprising cylindrical polypropylene cartridge filled with cation exchanger resin for softening of filling and make-up water according to VDI 2035 and/or manufacturer specifications in hot water based heating systems according to DIN EN 12828.
Downloads
Documents
Product photos
Accessories
9119219 - Fillsoft Softmix
Attachment dilution valve for setting a selectable discharge water hardness range for Fillsoft I or Fillsoft II water softening valves. Featuring in detail:
- Dilution valve with setting scale
- Bypass pipe
- Fitting set for installation on above mentioned water softening valves
9131058 - Fillguard Plus
Water meter for monitoring softening and demineralisation systems for heating water treatment (e.g. Fillsoft or Fillsoft Zero) or control of pumps, valves or systems during filling and draining of containers, etc.
The Fillguard Plus is an electronic water meter for measuring total water volumes and volume flows, as well as for counting down of a programmable specified water volume with limit value signalling by means of a pulse output or analogue signal. The Fillguard Plus also has an integrated sensor for monitoring the capacity state of demineralisation cartridges in the treatment of filling and make-up water for heating systems. Particularly suitable in conjunction with Fillsoft Zero for implementation of low-salt running according to VDI 2035. The Fillguard Plus continuously determines the conductivity of the demineralised water and outputs it via an integrated display; value checking and programming via a plastic foil keyboard. Voltage supply via supplied fully-wired 1.5 m long connection cable.
9131033 - Fillguard Connect
The 5m long connection cable has an 8-pin plug connector for plug-in-ready connection to the Fillguard Plus. The 7 individual wires can be used to transmit signals from alarm signal contacts, conductivity values and volume measurements to the control unit or the building management system. The Fillguard Plus power supply can likewise be provided via the Fillguard Connect connection cable.
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
:focal(1994x788:1995x789))
Reflex Solutions Pro allows you to design every Reflex and Sinus product into your project quickly and easily. After entering a few system parameters you will receive your custom product solution with all the relevant documentation.
