Product details

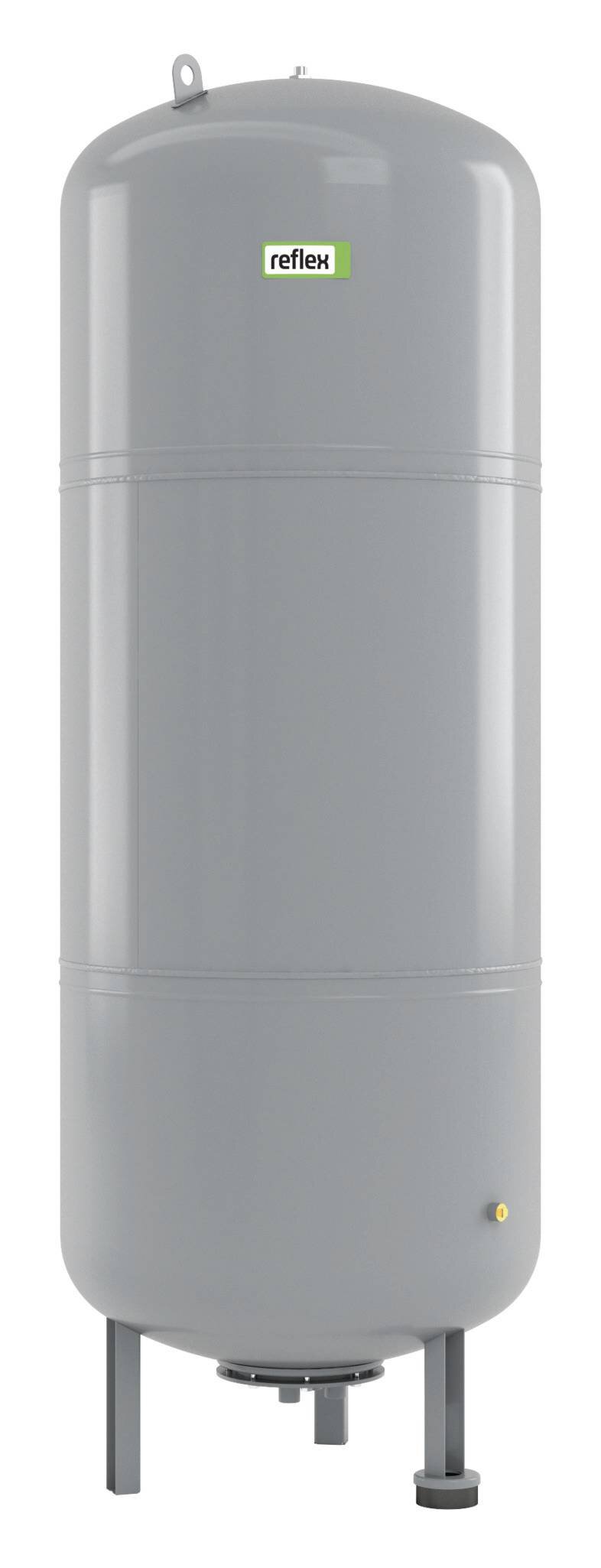

Variomat VG
Diaphragm expansion vessel for Variomat one or two-pump controlled pressure maintenance stations, unpressurised, closed to atmosphere. Approval according to the EU Pressure Equipment Directive 2014/68/EU. Built according to DIN EN 13831 and VDI 4708 or AD 2000.
Diaphragm expansion vessel for Variomat one or two-pump controlled pressure maintenance stations, unpressurised, closed to atmosphere. Approval according to the EU Pressure Equipment Directive 2014/68/EU. Built according to DIN EN 13831 and VDI 4708 or AD 2000.
- Floor-standing with foot structure
- Replaceable full diaphragm - compliant with DIN EN 13831
- Exterior plastic-coated
- With dipstick tube degassing
- including welded side socket for connection of a bladder rupture detector
- basic vessels VG incl. transducer for level sensing
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
optional
5990500 - thermal insulation VW 600
VW thermal insulation
For primary tanks of Variomat pressurisation systems in heating installations.Comprising 50 mm thick soft foam with a full covering of polyethylene-fabric lining, zip closure and brace-type fastening.
For primary tanks of Variomat pressurisation systems in heating installations.Comprising 50 mm thick soft foam with a full covering of polyethylene-fabric lining, zip closure and brace-type fastening.
optional
7857700 - diaphragm rupture detector MBM II
Membrane rupture detector
Electrode with evaluation relay for installation in an expansion vessel with an appropriate connection. Vessel must be pre-equipped for electrode (please note when ordering)
Electrode with evaluation relay for installation in an expansion vessel with an appropriate connection. Vessel must be pre-equipped for electrode (please note when ordering)
Inclusive of electrode relay for signal measurement for installation in installer-supplied control cabinet or for local installation.
- power supply 230 V/50 Hz
- floating output (changeover contact)
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
:focal(1994x788:1995x789))
Reflex Solutions Pro allows you to design every Reflex and Sinus product into your project quickly and easily. After entering a few system parameters you will receive your custom product solution with all the relevant documentation.
