Product details

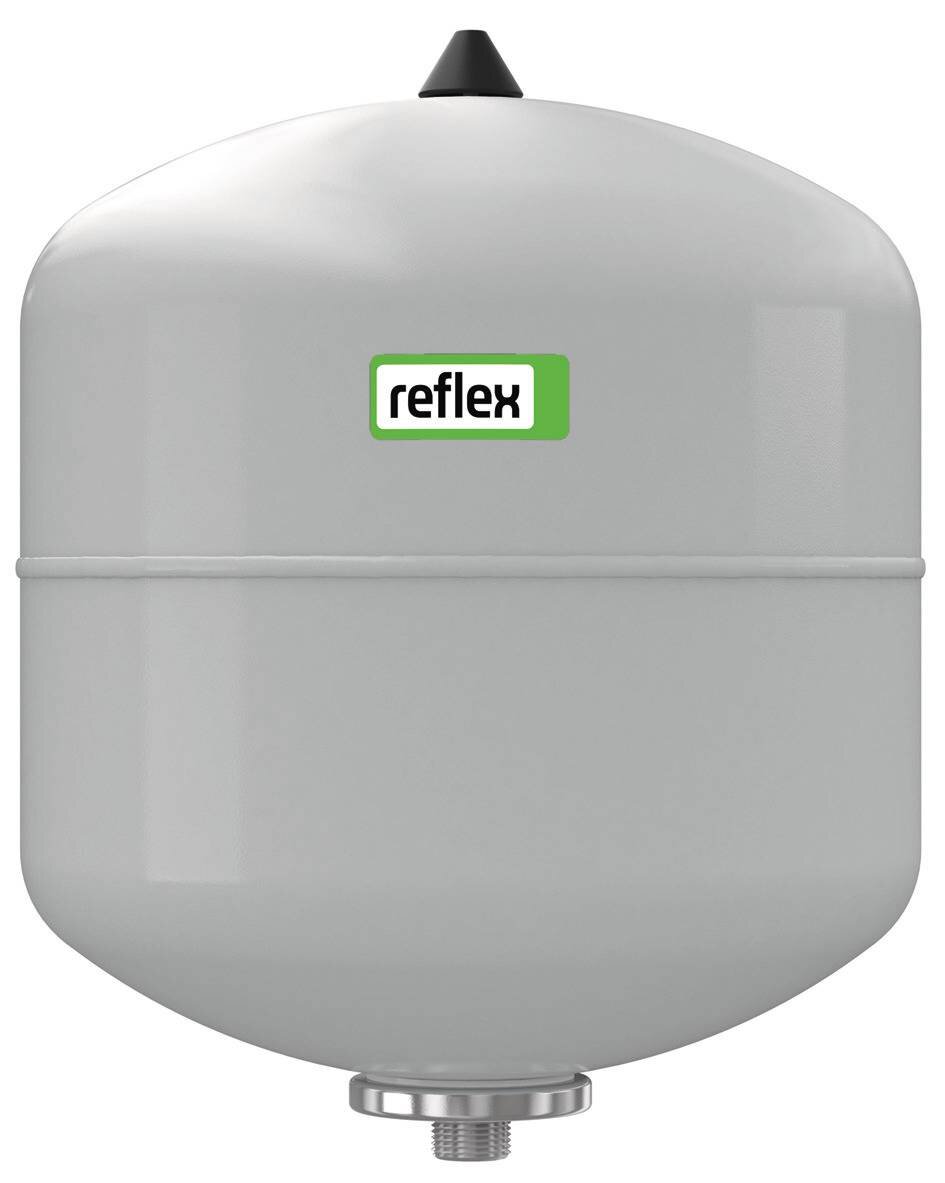

Reflex S
Diaphragm expansion tank for sealed solar, heating and cooling water systems. Vessels are designed and manufactured according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
Diaphragm expansion tank for sealed solar, heating and cooling water systems. Vessels are designed and manufactured according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
- durable epoxy resin coating
- up to 33 litres non-replaceable bladder, non-replaceable diaphragm for 50 - 600 litres
- for antifreeze additive of at least 25 – 50 %
- with threaded connections
- 33 litres with brackets, from 50 litres with adjustable feets
- max. permissible system temperature 120°C
- max. permissible operating temperature 70°C
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
:focal(1994x788:1995x789))
Reflex Solutions Pro allows you to design every Reflex and Sinus product into your project quickly and easily. After entering a few system parameters you will receive your custom product solution with all the relevant documentation.
