Product details

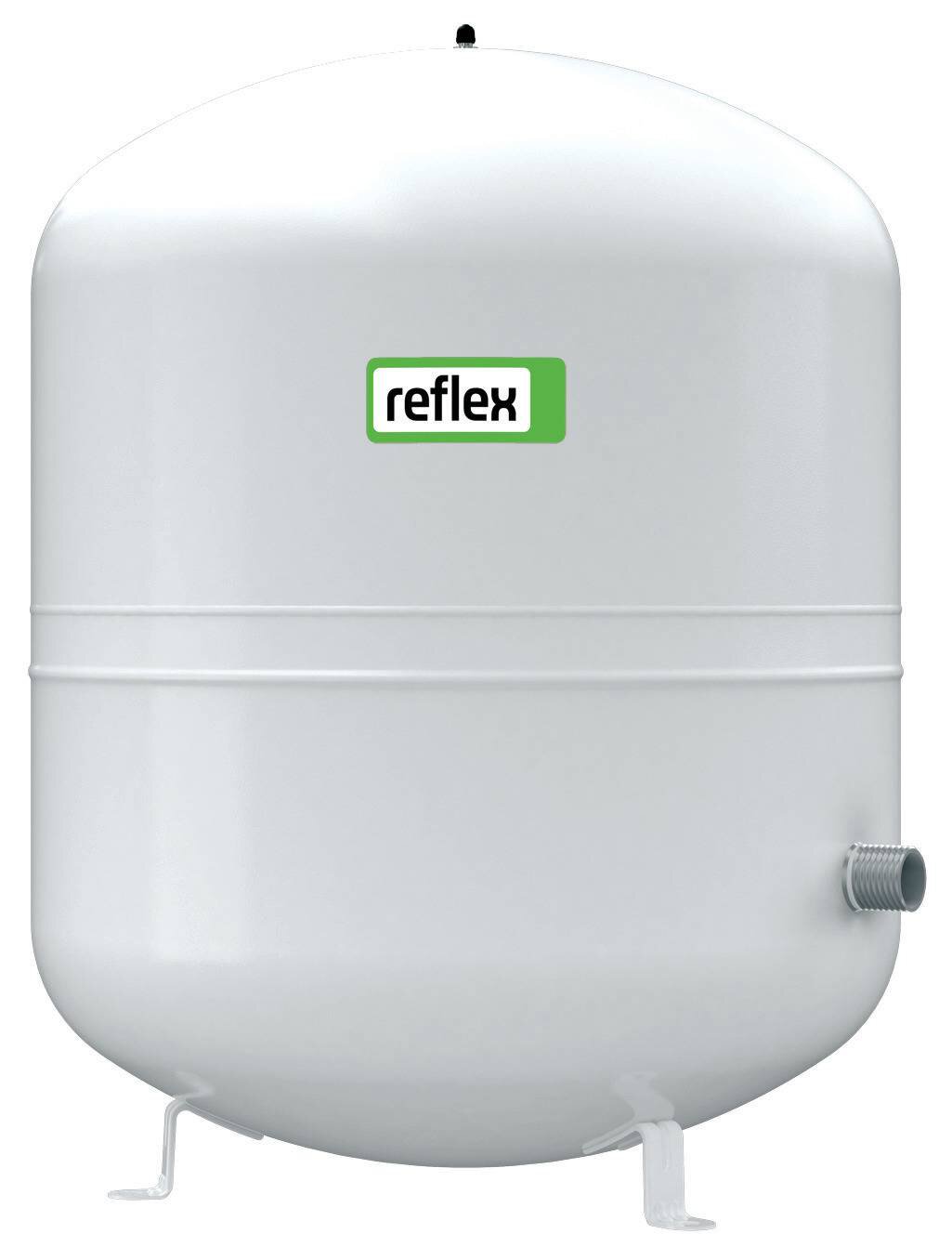

Reflex NG 35
Diaphragm expansion tank for sealed heating and cold water systems. Vessels are designed and manufactured according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
Diaphragm expansion tank for sealed heating and cold water systems. Vessels are designed and manufactured according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
- durable epoxy resin coating
- welded design
- non-replaceable diaphragm according to DIN EN 13831
- vertical from 35 litres
- for antifreeze additive of at least 25 – 50 %
- with threaded connections
- max. permissible system temperature 120 °C
- max. permissible operating temperature 70 °C
Downloads
Documents
Drawings
Product photos
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
:focal(1994x788:1995x789))
Reflex Solutions Pro allows you to design every Reflex and Sinus product into your project quickly and easily. After entering a few system parameters you will receive your custom product solution with all the relevant documentation.
