Product details

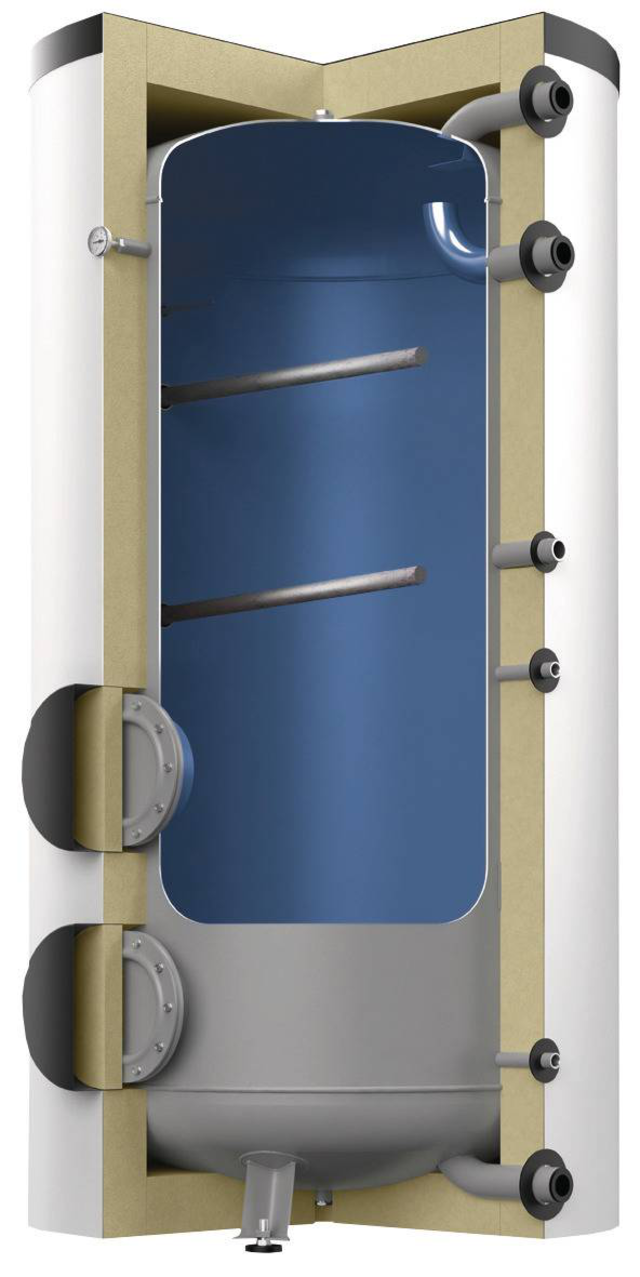

Hot water storage tank for external domestic hot water heating in an upright version without internal heat exchanger.Storage tank of steel S235JR+AR, designed according to DIN EN 12897 and the Pressure Equipment Directive 2014/68/EU. Enamelling for hygienic perfect drinking water is performed according to DIN 4753 T3.DHW tank up to 500 litre insulated with non-removable highly efficient insulation system according to DIN 4102-1 material class B2; DHW tank > 500 to 1000 litre insulated with 100mm; DHW tank > 1000 litre with 120mm removable fleece insulation, according to DIN 4102-1 material class B2.Tanks up to 2000 litres are supplied ready-insulated. Tanks greater than 3000 litres are transported horizontally, without insulation. Insulation must be ordered separately.Tank available in energy efficiency class C.The heat losses are measured on an externally certified test bed.
Downloads
Documents
Drawings
Product photos
Accessories
9116314 - EFHR 4.0
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
9116315 - EFHR 6.0
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
9116316 - EFHR 8.0
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
9116317 - EFHR 10.0
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
9116501 - EFHR 16.0
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
