Product details

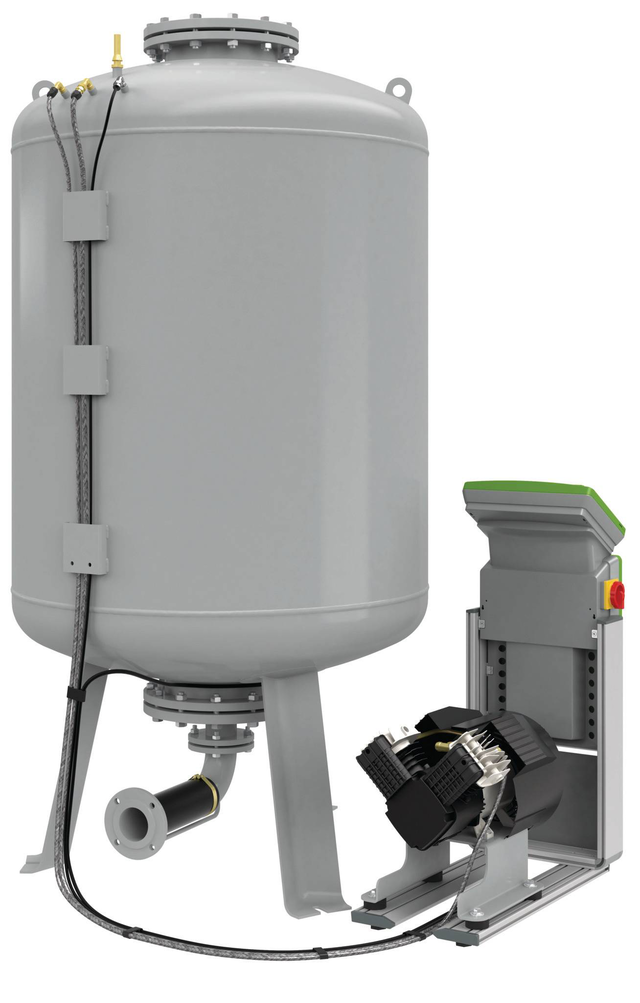

Reflexomat RG
Diaphragm expansion vessel for Reflexomat compressor-controlled pressure maintenance station for sealed heating and cooling systems. Approval according to the EU Pressure Equipment Directive 2014/68/EU. Built according to DIN EN 13831 and VDI 4708 or AD 2000.
No licence requirement according to SWKI HE301-01 and SVTI for (PSV * VN ≤ 3,000 bar * litre).
Diaphragm expansion vessel for Reflexomat compressor-controlled pressure maintenance station for sealed heating and cooling systems. Approval according to the EU Pressure Equipment Directive 2014/68/EU. Built according to DIN EN 13831 and VDI 4708 or AD 2000.
- Floor-standing with pedestal
- replaceable butyl bladder according to DIN EN 13831
- , plastic-coated inside and outside
- , vessel protection via component-tested air safety valve (SV)
- including welded side sleeve for connection of a membrane rupture detector
- RG" primary vessel including a transducer for level measurement
No licence requirement according to SWKI HE301-01 and SVTI for (PSV * VN ≤ 3,000 bar * litre).
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
optional
7857700 - diaphragm rupture detector MBM II
Membrane rupture detector
Electrode with evaluation relay for installation in an expansion vessel with an appropriate connection. Vessel must be pre-equipped for electrode (please note when ordering)
Electrode with evaluation relay for installation in an expansion vessel with an appropriate connection. Vessel must be pre-equipped for electrode (please note when ordering)
Inclusive of electrode relay for signal measurement for installation in installer-supplied control cabinet or for local installation.
- power supply 230 V/50 Hz
- floating output (changeover contact)
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
