Product details

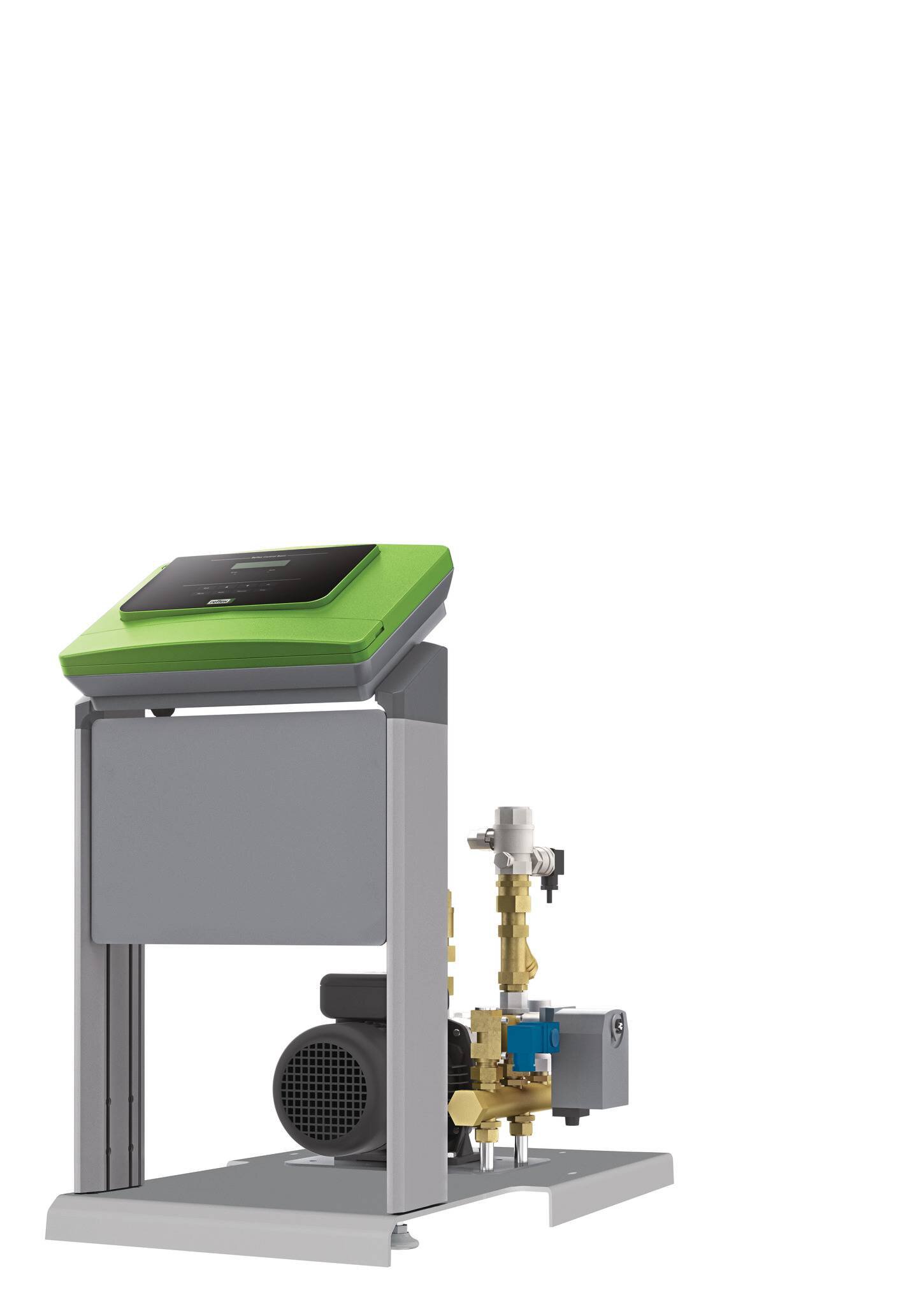

Variomat
Control unit, Hydraulics and control module for pressurisation, degassing, and water make-up in sealed heating water and cooling circuits.Constructed in compliance with DIN EN 12828 and the requirements of VDI 4708, with CE marking.Suitable for use in noise-sensitive areas.Functional unit comprising a hydraulic part and a Control Basic operating unit. Both are ergonomically combined in an easy-to-maintain modular floor-standing framework system made of EV 1 anodized aluminium precision sections and with CE marking.Hydraulic section:
Pressure maintenance is achieved by a stainless steel centrifugal pump in conjunction with a robust, dirt-resistant motor ball valve, with a dirt trap acting as an overflow device. A safety valve is provided to protect the connected Variomat primary vessel VG or secondary vessel VF against overpressure. System pressure is measured by an electronic sensor. System connections on the discharge side are designed as secured shut-off ball valves. All fittings are mounted on a rotatable base plate to allow for a more flexible arrangement of the hydraulic system.The Control Basic control unit is integrated in a robust plastic housing in which both the power and communication electronics and the control panel with dirt-resistant membrane-covered keyboard is housed. Control Basic is a fully automatic, freely configurable microprocessor control with real-time clock, differentiating error and parameter memory, two line plain text display for system pressure, tank filling level and all relevant operating and fault messages, LED display for operating modes and general error messaging. Communication electronics comprising:
Control unit, Hydraulics and control module for pressurisation, degassing, and water make-up in sealed heating water and cooling circuits.Constructed in compliance with DIN EN 12828 and the requirements of VDI 4708, with CE marking.Suitable for use in noise-sensitive areas.Functional unit comprising a hydraulic part and a Control Basic operating unit. Both are ergonomically combined in an easy-to-maintain modular floor-standing framework system made of EV 1 anodized aluminium precision sections and with CE marking.Hydraulic section:
Pressure maintenance is achieved by a stainless steel centrifugal pump in conjunction with a robust, dirt-resistant motor ball valve, with a dirt trap acting as an overflow device. A safety valve is provided to protect the connected Variomat primary vessel VG or secondary vessel VF against overpressure. System pressure is measured by an electronic sensor. System connections on the discharge side are designed as secured shut-off ball valves. All fittings are mounted on a rotatable base plate to allow for a more flexible arrangement of the hydraulic system.The Control Basic control unit is integrated in a robust plastic housing in which both the power and communication electronics and the control panel with dirt-resistant membrane-covered keyboard is housed. Control Basic is a fully automatic, freely configurable microprocessor control with real-time clock, differentiating error and parameter memory, two line plain text display for system pressure, tank filling level and all relevant operating and fault messages, LED display for operating modes and general error messaging. Communication electronics comprising:
- RS 485 port as data interface or for the connection of optional communication components
- Potential-free output for the forwarding of the collective message
- Digital input for signal processing of a contact water meter
- 230V output for connection of level-dependent makeup/degassing stations
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
recommended
7945600 - Commissioning Cat. 1
Service description:
commissioning category 1 for a standard system in the product ranges Reflexomat, Variomat or Servitec incl. primary vessel and water make-up unit by the customer service, comprising:
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
commissioning category 1 for a standard system in the product ranges Reflexomat, Variomat or Servitec incl. primary vessel and water make-up unit by the customer service, comprising:
- without travel and departure expenses,
- Adjustment of system to the operating parameters specified by the client,
- Checking the settings and operating parameters, and the system's performance and function in the overall system,
- Fillsoft and Fillset are checked too
- All set values documented in a report.
- electrical and hydraulic connection of the control unit, the accessory components and filled supply system.
- The expansion vessels of the pressurisation station must not be filled with water.
- A sufficient supply of filling water must be provided.
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
- Certainty that the system is set up for optimum operation
- Excluding of possible damage due to incorrect commissioning thus reliability and avoidance of time and costs for downtimes
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
Programming of the expansion and bus modules does not form part of commissioning. Programming is billed separately based on time and expenditure.
optional
7859100 - Master-Slave Connect
Master-Slave-Connect
Expansion option for Variomat pressurisation systems with Control Basic or touch controller.
Expansion option for Variomat pressurisation systems with Control Basic or touch controller.
For balanced, optimised operation of up to 10 Variomat/Variomat Giga in one network. All connected devices must have this control option available.
Separation between devices <1,000 m.
optional
8997705 - I/O module VS
I/O module
Extension for Reflexomat, Variomat and Servitec control units.
Extension for Reflexomat, Variomat and Servitec control units.
With two isolating amplifiers for the analogue signals from pressure and level measurement. Six digital input contacts and six potential free output contacts for processing messages and alarms. All housed in a dedicated plastic casing for direct integration into the associated control unit or, optionally, for Wall mounting.
Detailed description:
- Digital input: – freely configurable, 6 inputs, of which 3 are normally open, 24 V internal potential, standard configuration, e.g. for external temperature monitoring, minimum pressure signal, manual make-up, and 3 as normally closed contacts, 230 V external potential. Standard configuration as normally open contacts, e.g. for emergency stop, manual mode for operation of Pump/compressor, manual mode for operation of overflow device.
- Digital output: - 6 freely configurable potential free change-over contacts, standard configuration, e.g. for signalling make-up water faults, minimum pressure not reached, exceeding the maximum pressure, or manual/stop operating mode.
All the above contacts can be freely configured by the Reflex service team in accordance with the available information.
Assembly: The plastic control cabinet housing can be fitted into the designated mounting space of the control unit, as an alternative to on-site Wall mounting or installation in other control cabinets.
Wiring to the control unit is also carried out on the part of the building site.
optional
8860000 - bus module Lonworks Digital
Bus-Module Lonworks Digital
Bus module for conversion of the digital message(s) from the microprocessor controls Control Basic or Touch of Variomat, Reflexomat or Servitec into the Lonworks Digital data telegram.The cable connection to the Control microprocessor controller takes place over its potential-free contacts and must be site-provided analogously to the power supply. On the LonWorks side there is an interface with FFT-10 A Transceiver .Other digital messages can also be converted in conjunction with the I/O module (option).Installation:
Plastic switch cabinet housing for on site wall mounting or installation in other switch cabinets.The wiring to the control unit is likewise performed on site. Commissioning and wiring does not form part of the scope of delivery.
Bus module for conversion of the digital message(s) from the microprocessor controls Control Basic or Touch of Variomat, Reflexomat or Servitec into the Lonworks Digital data telegram.The cable connection to the Control microprocessor controller takes place over its potential-free contacts and must be site-provided analogously to the power supply. On the LonWorks side there is an interface with FFT-10 A Transceiver .Other digital messages can also be converted in conjunction with the I/O module (option).Installation:
Plastic switch cabinet housing for on site wall mounting or installation in other switch cabinets.The wiring to the control unit is likewise performed on site. Commissioning and wiring does not form part of the scope of delivery.
optional
8860100 - bus module Lonworks
Bus Module
Bus module for conversion of the information such as operating status or variable network parameters from the control interface (RS 485) of Variomat, Reflexomat or Servitec with Control Basic or Touch controller into the data telegram.Everything in its own plastic housing for direct integration in the corresponding control unit or optionally for wall mounting.Installation:
Plastic switch cabinet housing can be inserted in the provided mounting slot of the control unit, as an alternative to on site wall mounting or installation in other switch cabinets.The wiring to the control unit is likewise performed on site. Commissioning and wiring does not form part of the scope of delivery
The cable connection to the microprocessor control unit includes its RS 485 interfaces and must be site-provided analogously to the power supply.There is an interface with FFT--10 A transceiver on the LonWorks side.
Bus module for conversion of the information such as operating status or variable network parameters from the control interface (RS 485) of Variomat, Reflexomat or Servitec with Control Basic or Touch controller into the data telegram.Everything in its own plastic housing for direct integration in the corresponding control unit or optionally for wall mounting.Installation:
Plastic switch cabinet housing can be inserted in the provided mounting slot of the control unit, as an alternative to on site wall mounting or installation in other switch cabinets.The wiring to the control unit is likewise performed on site. Commissioning and wiring does not form part of the scope of delivery
The cable connection to the microprocessor control unit includes its RS 485 interfaces and must be site-provided analogously to the power supply.There is an interface with FFT--10 A transceiver on the LonWorks side.
