Vacuum spray tube degassing system
Compact degassing for small systems
The Servitec Mini reliably removes dissolved and free gases from the system water. To achieve this, a partial flow of the circuit water is finely atomised in the vacuum spray tube and returned to the system virtually free of gas.
Its compact design and intuitive Bluetooth controller make the Servitec Mini particularly easy to install, commission and operate. Ideal for smaller heating installations with a system volume of up to 1 m³. When using a storage tank, an additional storage volume of up to 1,000 litres is possible.
Where can the Servitec Mini be used?
Suitable for radiators and underfloor heating systems
For heating systems with a low water content (up to 1,000 litres)
Suitable for cooling systems with temperatures above 0°C and a glycol concentration of up to 50%
E.g. detached, semi-detached and multi-family houses, clubhouses, nurseries
Advantages
- efficient & economical
Make optimal use of energy and save on heating costs - quiet & comfortable
No gurgling from the heating or disturbing operating noises - safe & reliable
For reliable operation of the heating system - quick & easy
Plug-and-play installation for quick commissioning - low-maintenance & cost-effective
Low maintenance effort and rapid cost savings
How it works, explained simply
)
Technical Specifications
Max. operating pressure: 4 bar
Operating pressure: 0.5 – 2.5 bar
Max operating temperature: 60 °C
Max ambient temperature: 0 – 40 °C
Voltage supply: 230 V / 50 Hz
Electrical power consumption: 0.06 kW
Nominal current: < 0.3 A
Connections: G ½"
System volume VA: 1 m³ plus a storage volume of up to 1,000 litres
Depth x width x height (mm): 220/295/420
Weight: 5.6 kg
)

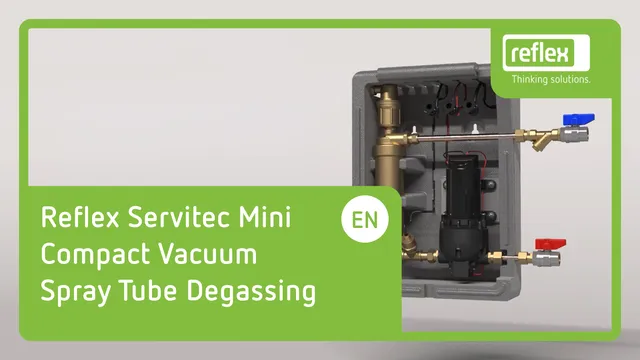

Construction
Sight-tube degassing
Allows the gases to escape while keeping the system vacuum-tight.Vacuum spray tube
In the vacuum spray tube, the circulating water is finely atomised. The precisely coordinated height and diameter ensure that the water is sprayed into the free vacuum during the degassing cycle.Shut-off valve with filter insert
The shut-off valve is located at the circulating-water inlet and features an integrated filter insert. The connection size is G ½".Inlet for gas-rich circulating water
The gas-rich circulating water is supplied to the Servitec Mini via a DN 15 connection.Robust diaphragm pump
The diaphragm pump is insensitive to dry running, thereby ensuring reliable operation.Outlet for low-gas circulating water
The degassed circulating water is returned to the system via a DN 15 connection.Integrated pressure sensor
The pressure sensor is integrated into the vacuum spray tube. It measures the vacuum in the spray tube and enables demand-based pump control.
)
)

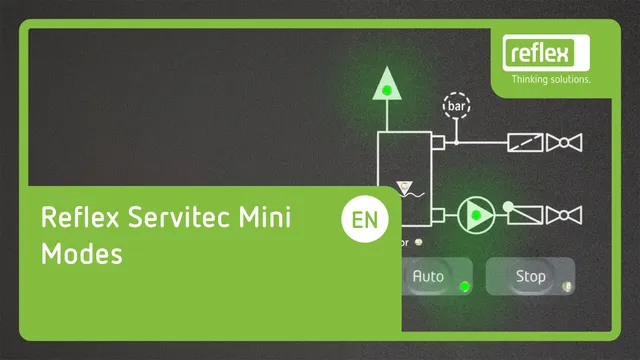

Individual adjustment to system operation
)
Flexibility in operation
Once it has been professionally assembled and commissioned, the Servitec Mini can be easily adapted to the requirements of the specific system. The various operating modes allow the degassing process to be specifically tailored to the system’s operation.
In addition to continuous degassing, interval degassing is also available. The desired operating times can be set according to individual requirements.

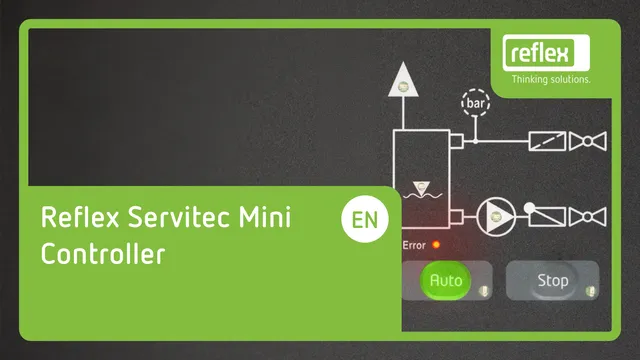

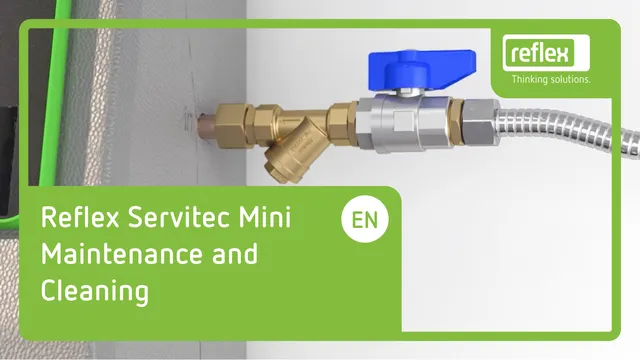

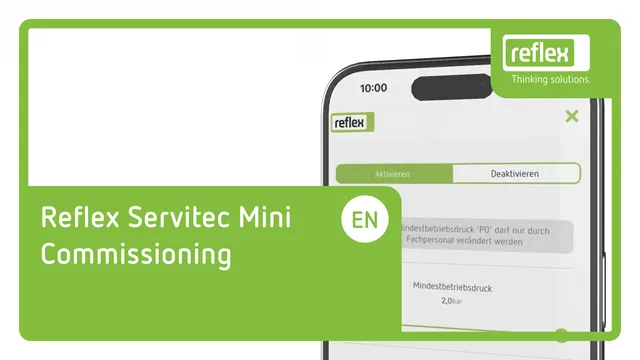

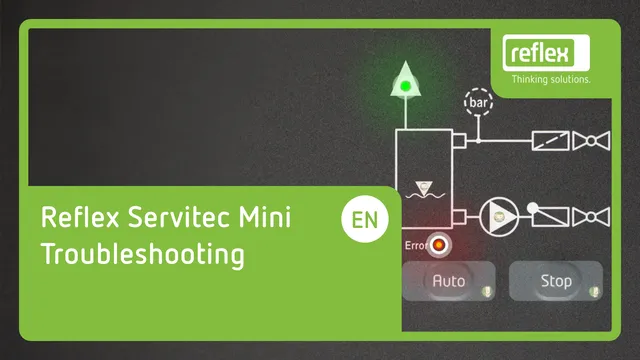

More videos about the Servitec Mini
)
)
)
)
Frequently Asked Questions
Please contact us directly!
Would you like to find out more about the Servitec Mini? We’d be happy to help with any questions or specific requirements you may have.
Mon–Fri: 8.00 am – 4.30 pm
)
