Product details
- Fillsoft water softening resin cartridge (green) FSP 6000 for the water softeningor
- Fillsoft Zero mixed bed resin cartridge (grey) FZP 3000 for water desalination

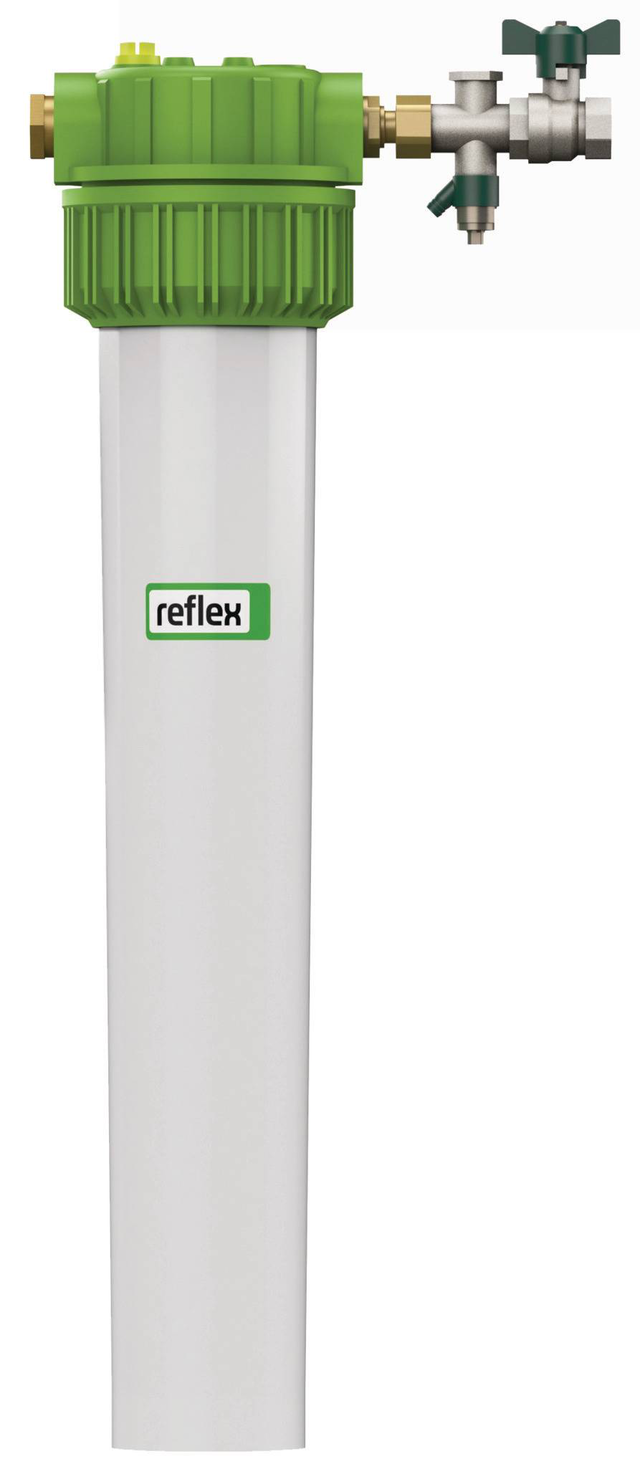

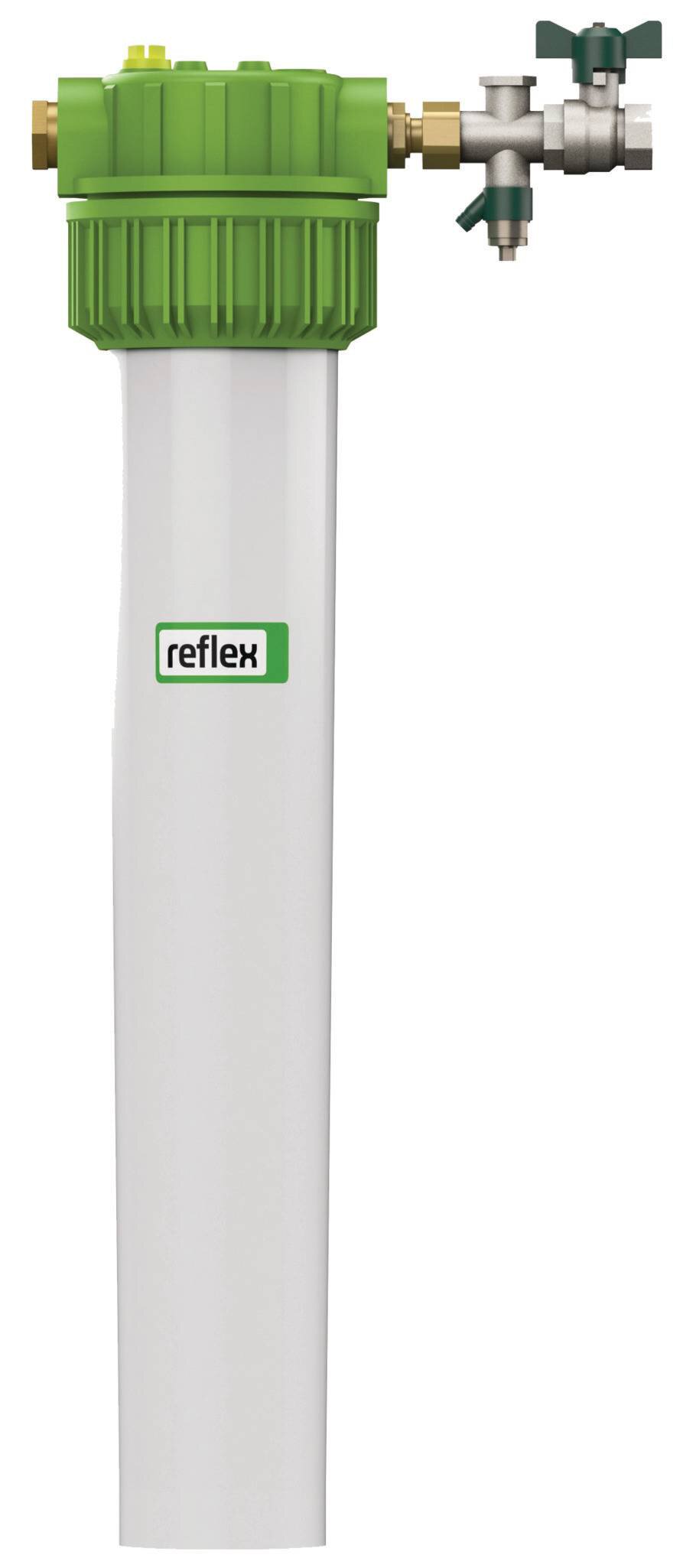

Fillsoft I individually comprising:
- a cylindrical propylene housing with brass thread connections for holding one of the above mentioned water treatment cartridges and optional attachment of a Softmix mixing mechanism,
- Flow limiter

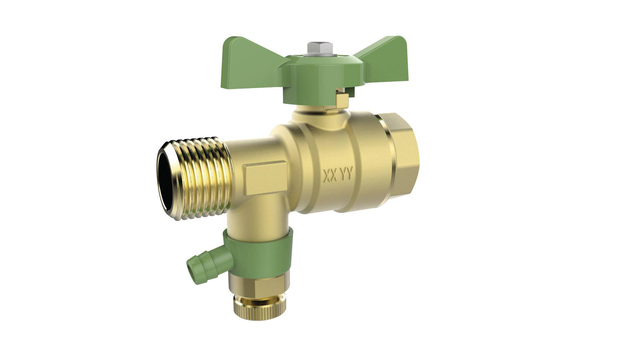

- Shut-off ball valve with sampling tap
Components are arranged as a compact fitting for installation in the filling and makeup water line.
Downloads
Documents
Drawings
BIM data
Product photos
Accessories

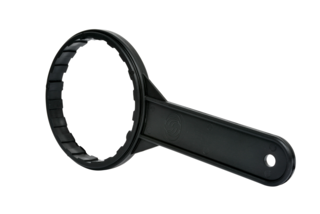

9200276 - Fillsoft Tool
Sturdy plastic key for safe undoing and tightening of the Fillsoft screw connection to simplify cartridge replacement.
6811800 - Fillsoft FSP 6000
Cation resin cartridge for filling and make-up water softening, fitting in the Fillsoft I or II cartridge housing.
Comprising cylindrical polypropylene cartridge filled with cation exchanger resin for softening of filling and make-up water according to VDI 2035 and/or manufacturer specifications in hot water based heating systems according to DIN EN 12828.
9125662 - Fillsoft Zero FZP 3000
Mixed bed resin cartridge for filling and make-up water softening, fitting in the Fillsoft I or II cartridge housing
Comprising cylindrical polypropylene cartridge filled with mixed bed resin for demineralisation of filling and make-up water according to VDI 2035 and/or manufacturer specifications in hot water based heating systems according to DIN EN 12828. Level of demineralisation down to a conductivity of 10 µS/cm.

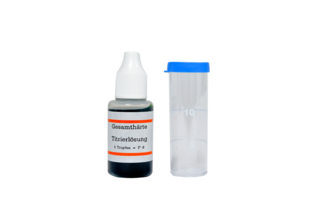

6811900 - Fillsoft °dH-Set
- 15 ml titrating solution
- Test tubes
- Testing guide
7945722 - Commissioning Cat. 4
commissioning of Fillsoft in conjunction with Fillguard and Fillcontrol Plus compact by the customer service, comprising:
- Adjustment of system to the operating parameters specified by the client,
- Checking the settings and operating parameters, and the system's performance and function in the overall system,
- All set values documented in a report.
- The static expansion vessels of all make-up systems must be preset to the pressure specified in the installation and operating instructions.
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
- Certainty that the system is set up for optimum operation
- Excluding of possible damage due to incorrect commissioning thus reliability and avoidance of time and costs for downtimes
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
